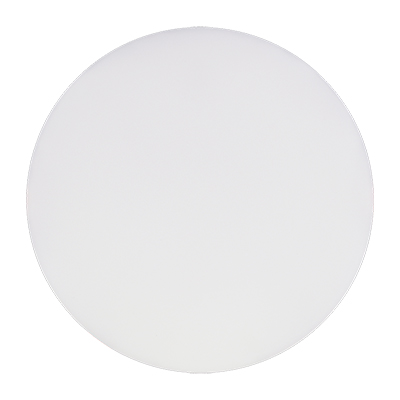

FRAMELESS PANEL LIGHT ROUND TYPE
B29770-Frameless Panel Light 6W·10W·15W·22WRound recessed model

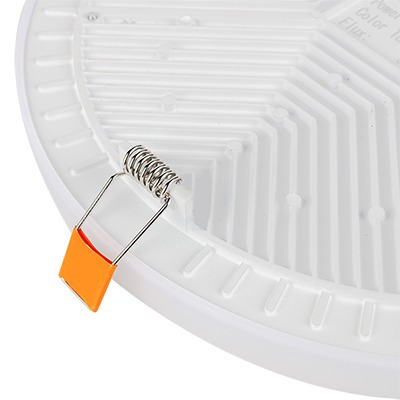

Die cast aluminum housing
Excellent heat sink
PS diffuser minimal glare
High efficiency constant current driver
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
PF |
RA |
CCT |
DIM |
IP |
Class Ⅱ |
ΦxH |
LIFE |
| 6W | 120V/230V | 480Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 90x19mm | 25,000H |
| 10W | 120V/230V | 800Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 120x19mm | 25,000H |
| 15W | 120V/230V | 1200Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 170x19mm | 25,000H |
| 22W | 120V/230V | 1760Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 225x19mm | 25,000H |
