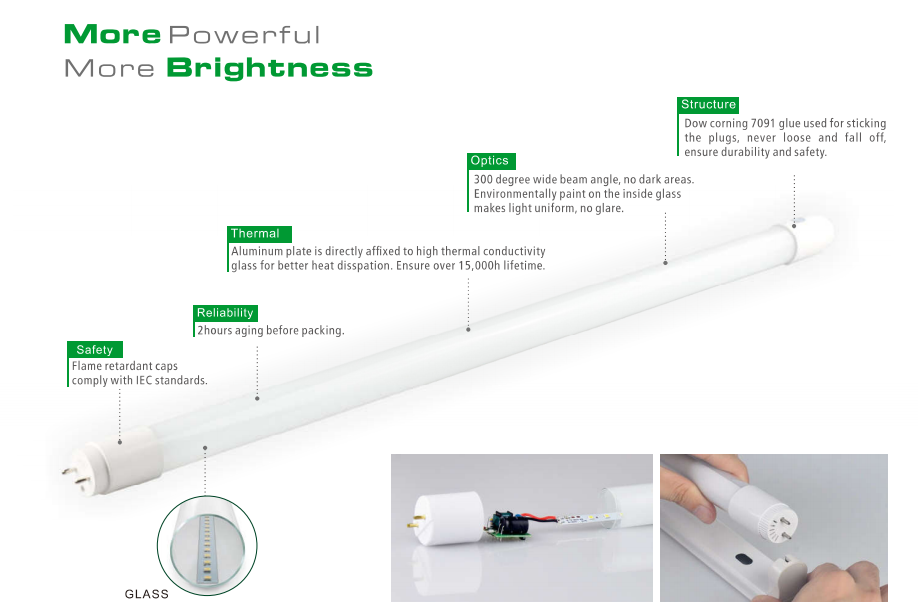

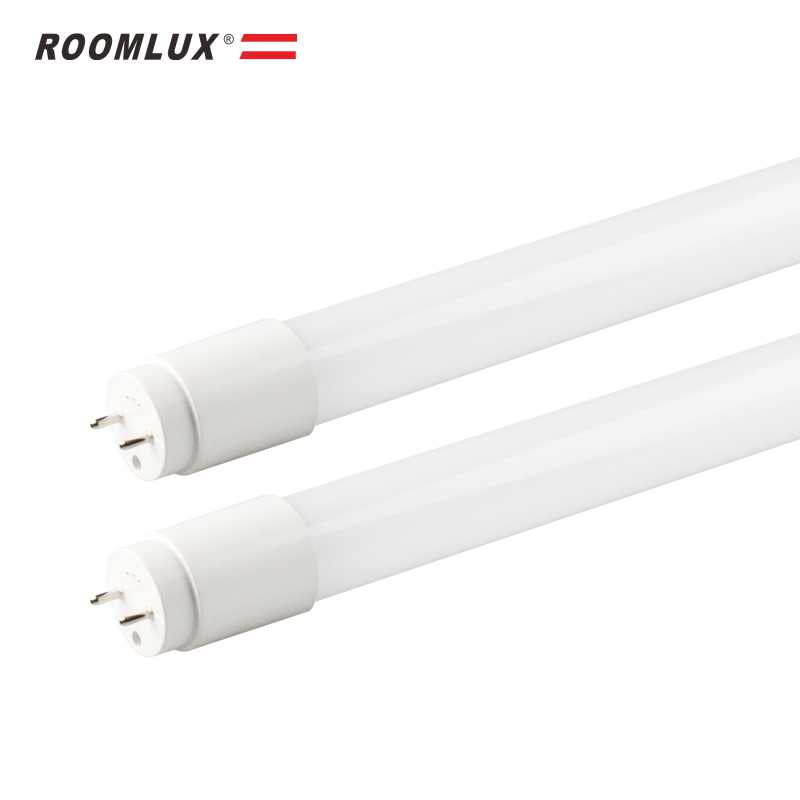

LED TUBE T8

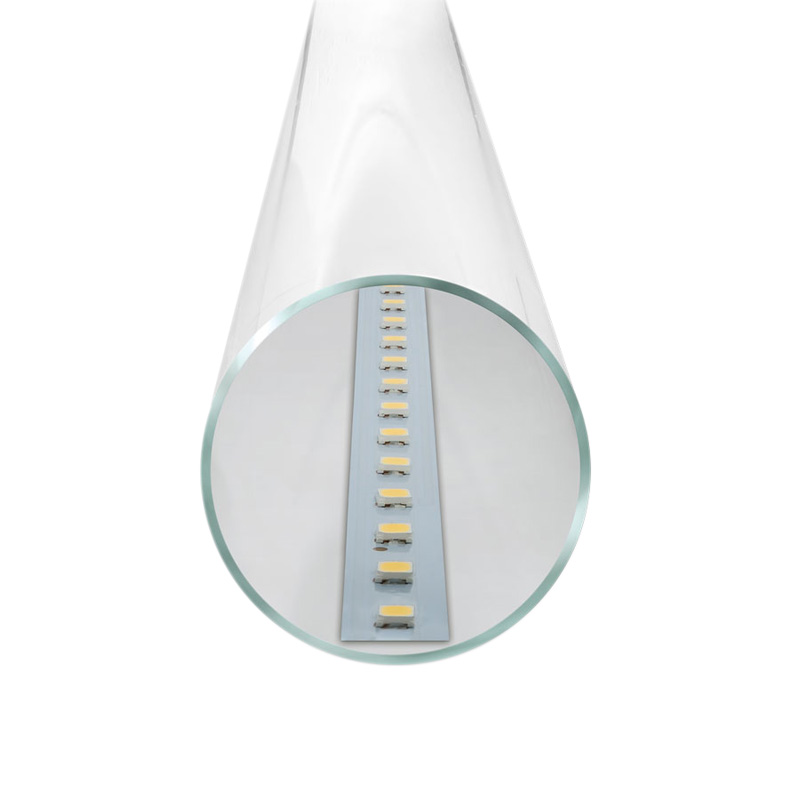

B25515 LED TUBE GLASS 150LM/W G13 9W 13W 18W 24W
Up to 60% energy savings over fluorescent lamp
3x greater lamp life versus fluorescent lighting
Superior light output
Negligible light depreciation over time
Easy installation ( ballast ready and firect wire products available ) \
100% recycle.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 9W | 120V/230V | 700Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 13W | 120V/230V | 900Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x909mm | 30,000H |
| 18W | 120V/230V | 1400Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 24W | 120V/230V | 1920Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1514mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 9W | 120V/230V | 800Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 13W | 120V/230V | 1150Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x909mm |
30,000H |
| 18W | 120V/230V | 1600Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 24W | 120V/230V | 2160Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1514mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 9W | 120V/230V | 900Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 13W | 120V/230V | 1300Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x909mm | 30,000H |
| 18W | 120V/230V | 1800Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 24W | 120V/230V | 2400Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1514mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 9W | 120V/230V | 900Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 13W | 120V/230V | 1300Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x909mm | 30,000H |
| 18W | 120V/230V | 1800Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 24W | 120V/230V | 2400Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1514mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 9W | 120V/230V | 1350Lm | A++ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 13W | 120V/230V | 1950Lm | A++ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x909mm | 30,000H |
| 18W | 120V/230V | 2700Lm | A++ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 24W | 120V/230V | 3600Lm | A++ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1514mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 0.6M-11W | 120V/230V | 1100Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 0.6M-13W | 120V/230V | 1300Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
| 0.6M-15W | 120V/230V | 1500Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x604mm | 30,000H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
CAP |
RA |
CCT |
PF |
DIM |
DxH |
LIFE |
| 1.2M-22W | 120V/230V | 2200Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 1.2M-26W | 120V/230V | 2600Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
| 1.2M-30W | 120V/230V | 3000Lm | A+ | 300° | G13 |
>80 |
3000K/4000K/6500K | 0.5 | NON-DIM | 26x1213mm | 30,000H |
