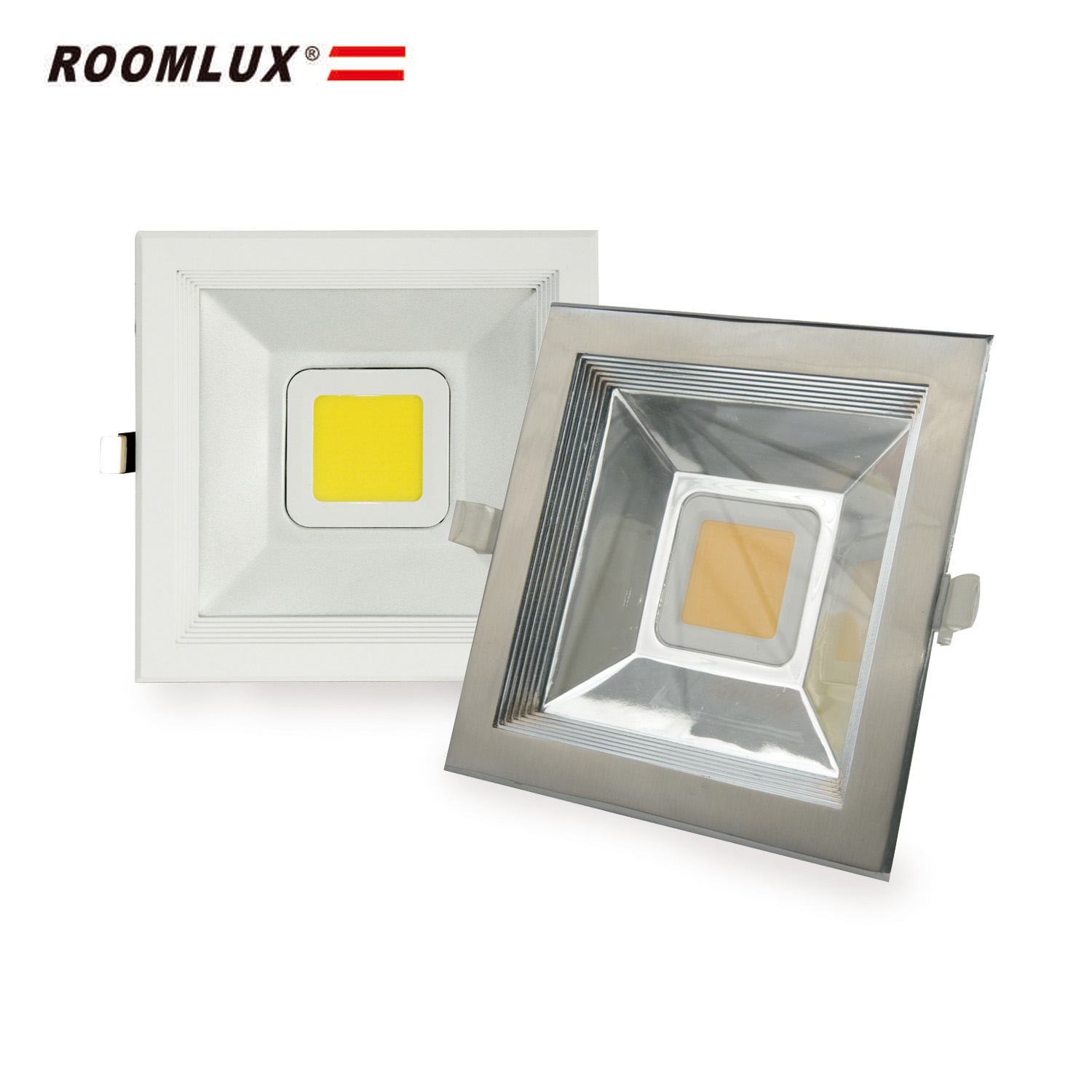

COB LED DOWNLIGHT
B27705-Square/2.5'' 8W·3'' 10W·4'' 15W·5'' 20W·6'' 30W
White or nickel housing available
Beam Angle 120°
Die cast aluminum housing
High efficiency constant current driver
Ideal for indoor and commercial lighting
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
PF |
RA |
CCT |
DIM |
IP |
Class Ⅱ |
ΦxH |
LIFE |
| 2.5'' 8W | 120V/230V | 720Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 105x105x50mm | 25,000H |
| 3'' 10W | 120V/230V | 900Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 130x130x45mm | 25,000H |
| 4'' 15W | 120V/230V | 1350Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 173x173x45mm | 25,000H |
| 5'' 20W | 120V/230V | 1800Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 190x190x45mm | 25,000H |
| 6'' 30W | 120V/230V | 2700Lm | A+ | 120° | 0.5 | >80 | 3000K/4000K/6500K | NON-DIM | IP20 | II | 223x223x45mm | 25,000H |
